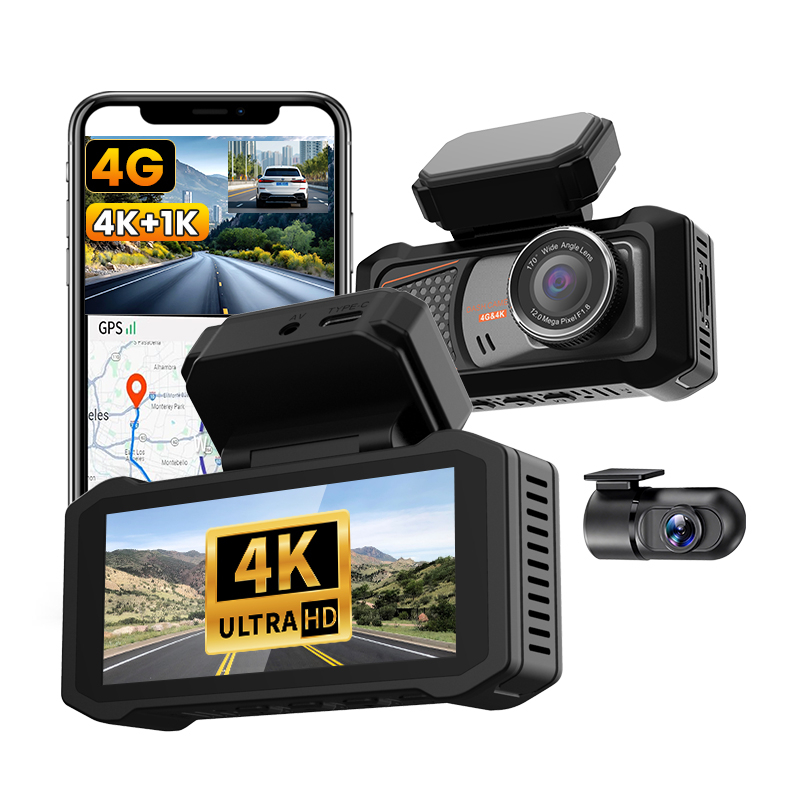

The iSEN Z77 combines high-resolution video recording with remote monitoring, satellite navigation, and intelligent driver-assistance systems.

• Dual-camera system: front and rear.
• 4K front recording at 25 frames per second.
• Full HD rear recording at 25 frames per second.
• 3.69" IPS touchscreen.
• 4G LTE CAT1 connectivity.
• Live video streaming through the 4G network.
• GPS and BeiDou positioning.
• Vehicle monitoring while parked.
• Two-way audio communication.
• ADAS and BSD systems for traffic assistance.
• Support for microSD cards up to 512GB.

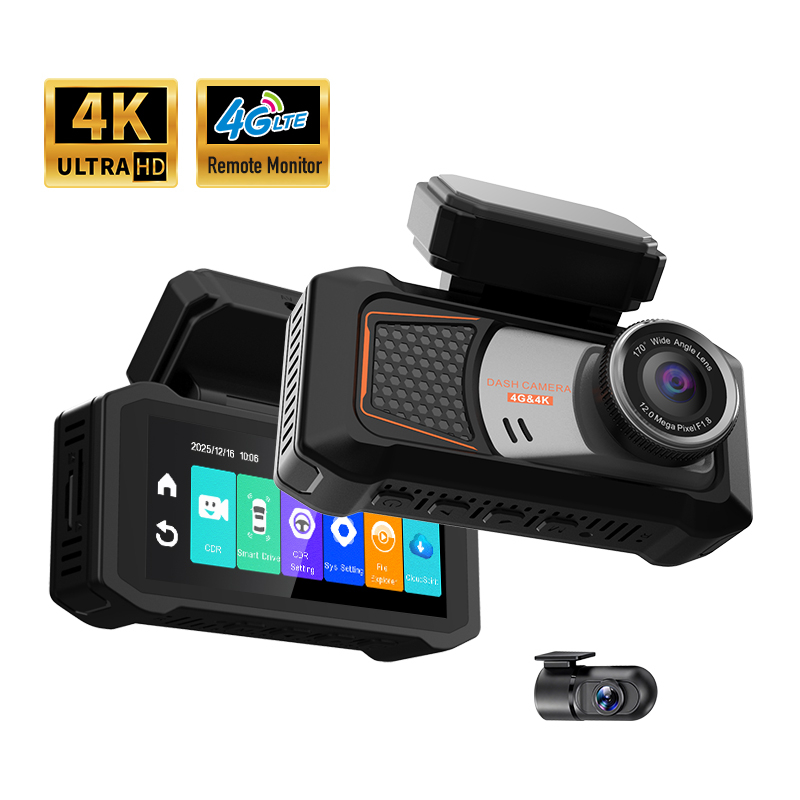

The main unit features a compact IPS touchscreen designed for quick access to menus, settings, and camera views. The touch interface simplifies navigation through the device functions.

• 3.69" IPS touchscreen.
• Intuitive color interface.
• Quick access to recording and connectivity functions.
• Compact construction for installation inside the vehicle.
• Main unit with integrated front camera.
• Separate secondary camera for the rear of the vehicle.

The front camera captures the road in 4K resolution, providing detailed images that can help identify vehicles, road signs, and events occurring in traffic.

• Video resolution: 3840 × 2160 pixels.
• Video quality: 4K.
• Recording rate: 25fps.
• Viewing angle: 140°.
• Video and photo capture.
• TS video format with H.264 compression.
• Audio recording available.

The secondary camera monitors the area behind the vehicle and completes the dual recording system. It can capture events occurring at the rear while driving or maneuvering.

• Video resolution: 1920 × 1080 pixels.
• Video quality: Full HD.
• Recording rate: 25fps.
• Viewing angle: 130°.
• Connection through the included extension cable.
• Recording synchronized with the main unit.

The SA230 hardware platform processes the video streams from both cameras and manages the connectivity, recording, and driver-assistance functions.

• SA230 main chipset.
• Arm Cortex-A7 processor.
• Additional RISC-V processor.
• Simultaneous processing for the front and rear cameras.
• H.264 video compression.
• TS recording format.
• Support for audio recording.

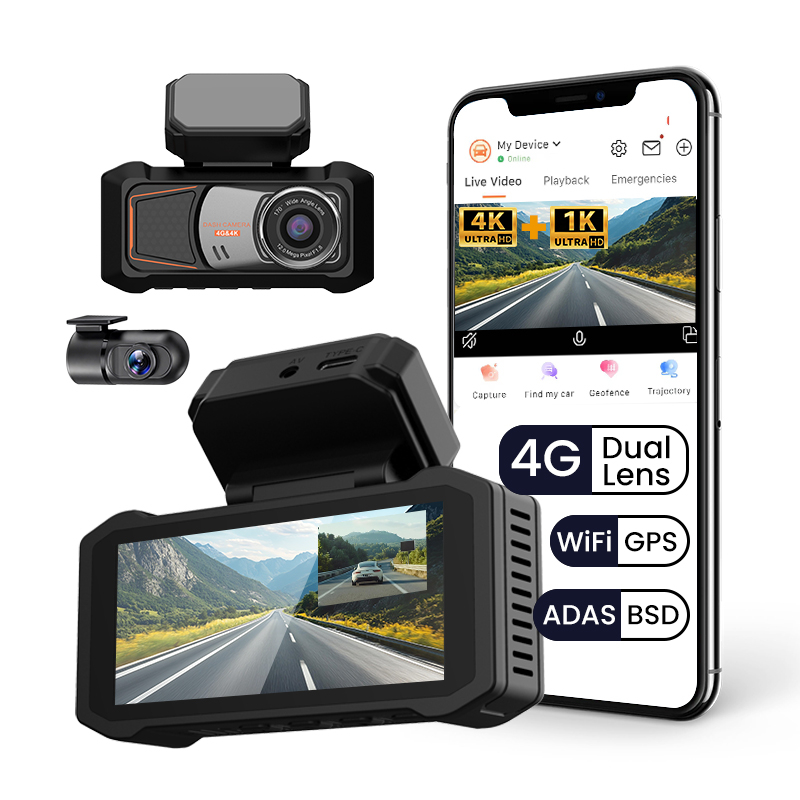

The iSEN Z77 allows remote vehicle monitoring through the 4G mobile network and the CloudSpirit app. The device can transmit live footage and provides quick access to recordings.

• Quectel EC800K-EU 4G module.
• 4G LTE CAT1 network.
• CloudSpirit mobile app.
• Live video streaming through 4G.
• Wi-Fi 802.11 b/g/n 2.4GHz.
• Wi-Fi Hotspot function.
• Internet access to the camera.
• Updates and synchronization through the app.

Satellite positioning allows route tracking and recording of the vehicle location during journeys.

• Integrated GPS.
• BeiDou support.
• Route recording.
• Real-time positioning.
• Journey history through the app.

The car dash camera is equipped with intelligent functions that help improve safety while driving and monitor the vehicle when it is parked.

• Parking monitoring.
• ADAS - lane departure warning.
• ADAS - forward collision warning.
• ADAS - front vehicle start warning.
• BSD - blind spot detection.
• Automatic event recording.

The integrated microphone and speaker allow two-way audio communication through the compatible app.

• Integrated microphone.
• Integrated speaker.
• Two-way audio communication.
• Audio recording synchronized with the video.

The device supports high-capacity microSD cards for storing a large volume of video recordings.

• microSD card support.
• Maximum capacity: 512GB.
• Class 10 or higher recommended.
• TS video format.
• H.264 video compression.
• Compatible with the CMSV6 platform (under development).
• JT808 / JT1078 protocol (under development).

• 4K front camera.
• Full HD rear camera.
• 3.69" IPS touchscreen.
• Live video streaming through 4G.
• GPS + BeiDou.
• Wi-Fi Hotspot.
• Parking monitoring.
• Audio recording.
• Photo and video capture.
• ADAS.
• BSD.
• Two-way audio communication.
• Support for microSD cards up to 512GB.
